Killian’s Custom Metal distributes many panel profiles from various companies.  We can provide products such as R- Panel or PBR, corrugated rusted panels, architectural wall and roof systems.  We can assist you in finding panel to match for repair or replacement.

commercial awnings

Commercial Panels

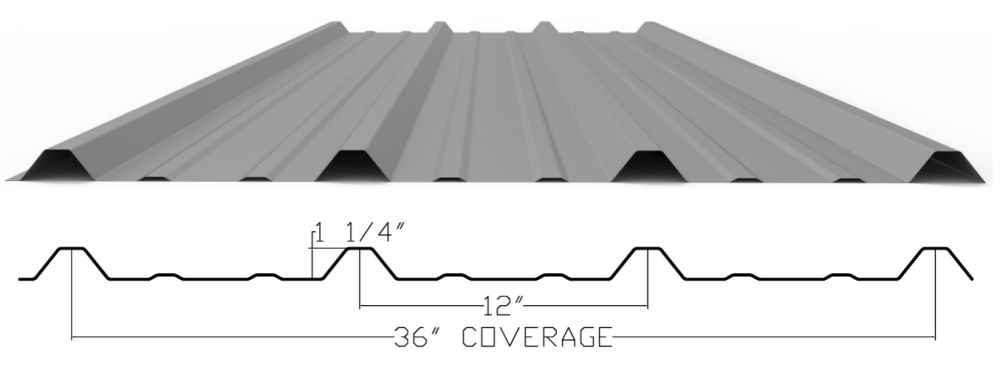

PBR Panel

PBR panel 1000w

PBR Panel – A higher ribbed profile that is ideal for pre-engineered metal buildings. R-panels offer strength, attractive profile, and long-lasting performance. Manufactured in 26 ga., and available in 22 colors. Available in 24 ga. and 22 ga. by special order. The Minimum recommended slope is 1:12 with sealant.

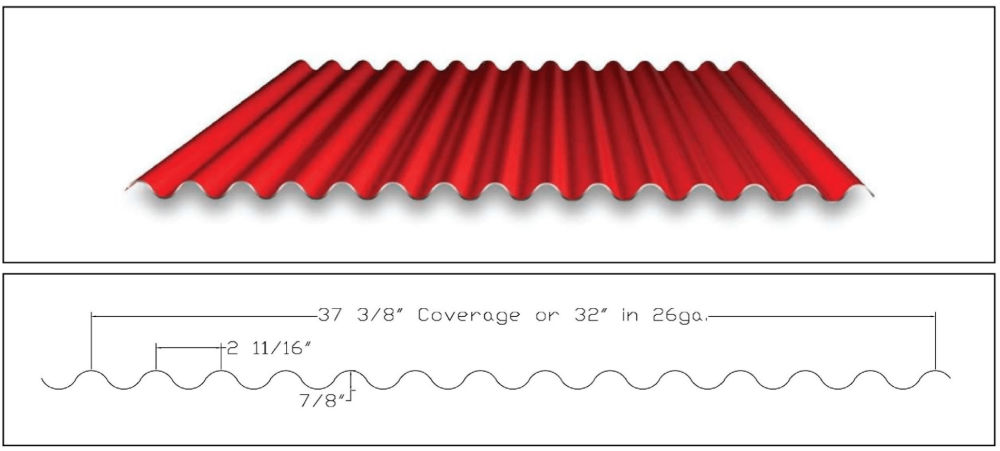

7/8″ Corrugated

875in corrugated 500w

7 /8″ Corrugated Panel is extremely strong and impact resistant. 7 /8″ Corrugated is a great choice for roofing and exterior siding, as well as interior projects. 7 /8″ Corrugated Panel is a great economical and structural choice that is an exposed fastener metal roof and siding. It is available in 32 PVDF colors in 24. ga, and 3 colors in 26 ga. (Others by special order). Minimum slope is 3: 12 with sealant.

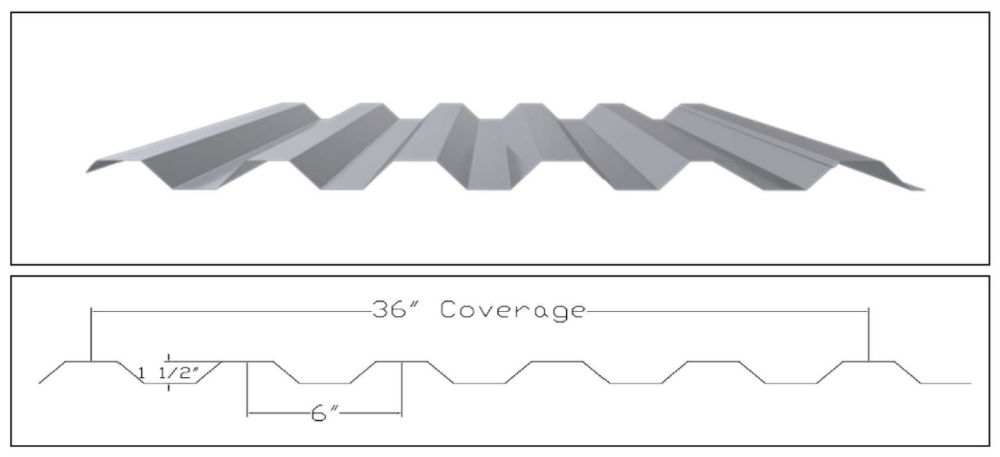

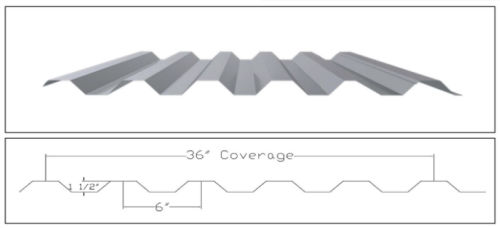

7.2 Panel

7.2 Panel 500w

7.2 Panel- A very versatile and economical product for commercial, industrial, and architectural projects. 7.2 Panels offer an attractive profile along with long-lasting performance. Manufactured in 24 ga., and is available in 32 colors. Available in 22 ga. by special order. Minimum recommended slope is 1/2:12

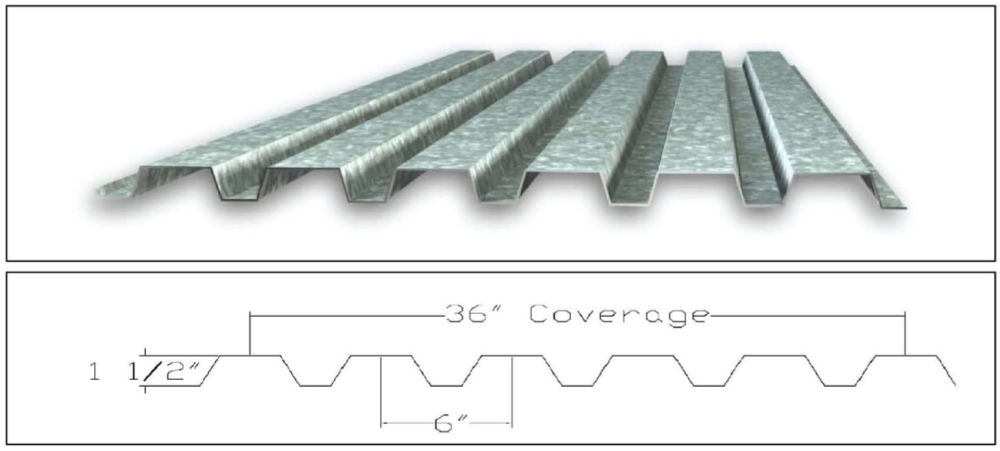

B-Deck

B Deck 500w

B-Deck is a widely used panel for decking. Available in 22 ga. galvanized panels, it is frequently used in various applications such as siding, roofing, and flooring.

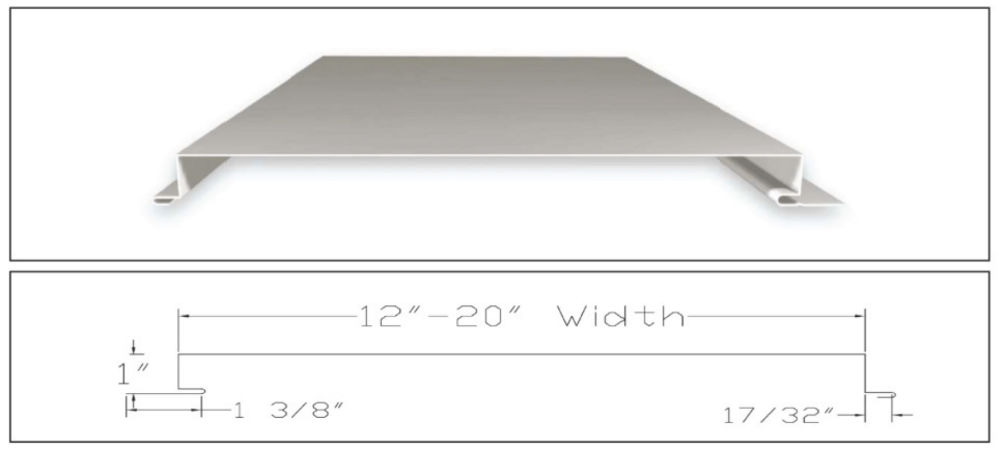

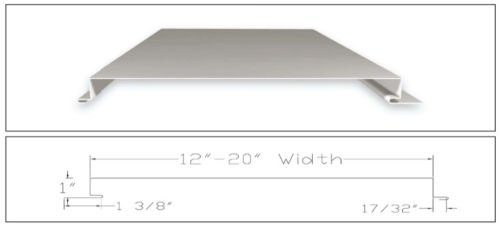

FPl Flush/Soffit/Wall Panel

FP1 Flush Soffit Wall Panel 500w

FPl panel is a prefinished and maintenance-free panel for open spans. FPl panel can be used for various applications such as soffit, liner, fascia, and even ceilings. It is available in 32 PVDF colors in 24 ga and comes in multiple configurations such as smooth, grooved, or perforated. It also can be configured as flush or with a 3″ reveal.

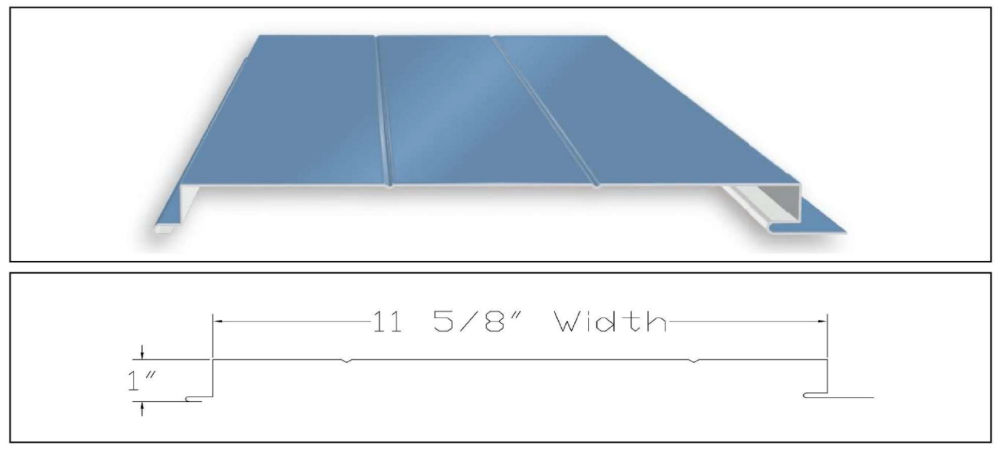

L-Panel

L Panel 500w

L- Panel is a maintenance-free and economical panel for open spans. It can be ed for various applications such as soffit, liner, fascia, and even ceilings. It is available in 23 stock colors as well as 8 premium colors, all of which are manufactured in 24 ga. panels. It can be configured as smooth, grooved, or perforated.

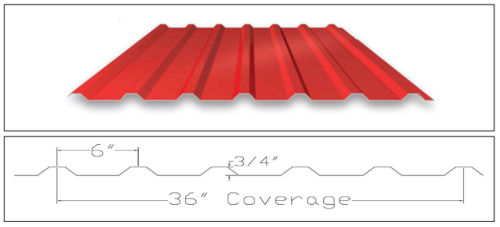

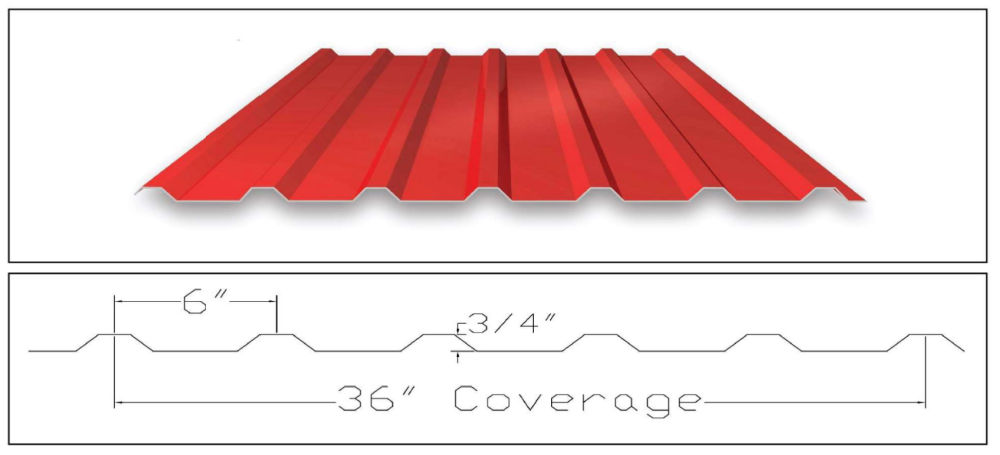

M-Panel

M Panel 500w 1

M-Panel is a stiffer ribbed profile that is ideal for pre-engineered metal buildings. It offers a durable and high strength profile with 6″ centers. It is available in 26ga. and 24ga. Minimum recommended slope is 3:12 with sealant.

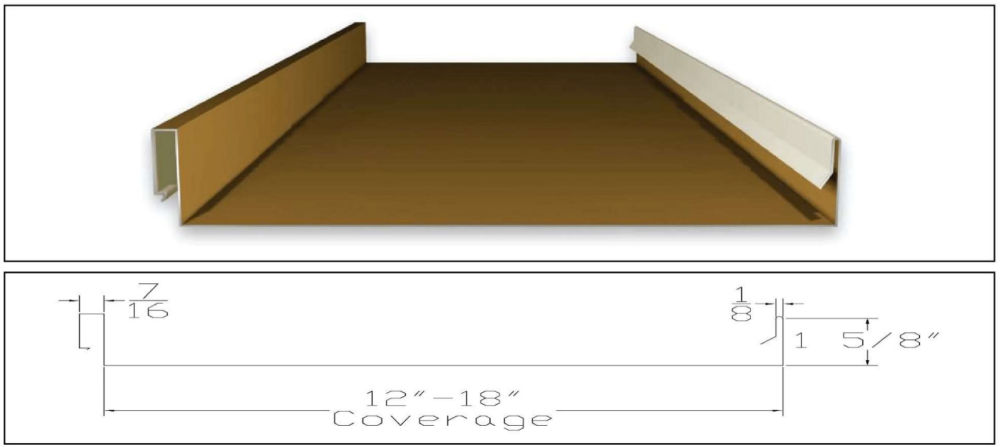

SL175 Panel

SL175 Panel 500w 1

SL 17 5 is an excellent structural standing seam roof panel that can be used in various roof, mansard, and fascia applications. Its design allows it to be applied to various solid substrates and even open purlins. This panel offers hidden clips and a snap-lock seam, which takes away the need for job site seaming. It is available in 32 PVDF colors in 24ga, and 19 WXL and 5 PVDF colors in 26 ga. The minimum recommended slope is 2: 12 with sealant.

Commercial Panel Trims

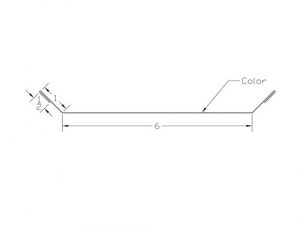

Counter Flashing

Counter Flashing
Counter Flashing 3D

Counter Flashing is designed to prevent moisture from getting to the upper edges of the flashing on walls, curbs, pipes, or rooftop units.

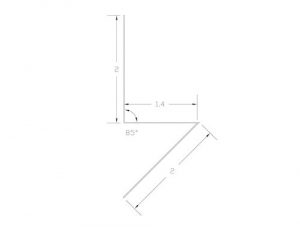

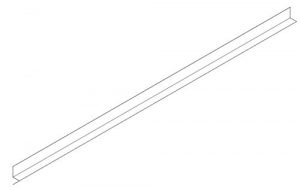

R-Panel Rat Guard

R Panel Rat Guard
R Panel Rat Guard 3D

Rat Guard is installed at the bottom of panels to prevent anything going up the panel ribs.

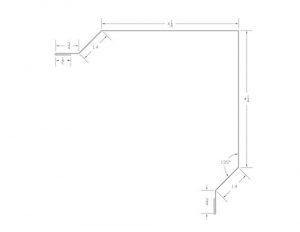

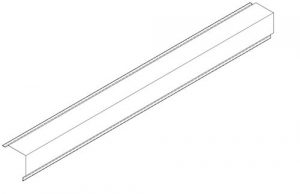

R-Panel Large Corner

R Panel Large Corner
R Panel Large Corner 3D

Large Corner can be used as rake on the roof edge or as corner for the walls.

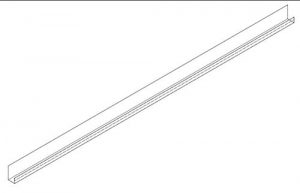

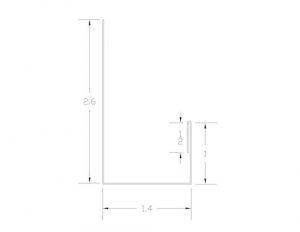

R-Panel J Trim

R Panel J Trim
R Panel J Trim 3D

J Trim is used to go around doors, windows, or other edges of metal panel that need to be concealed.

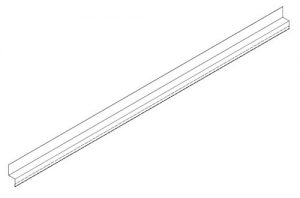

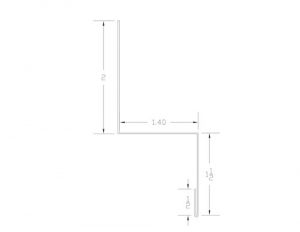

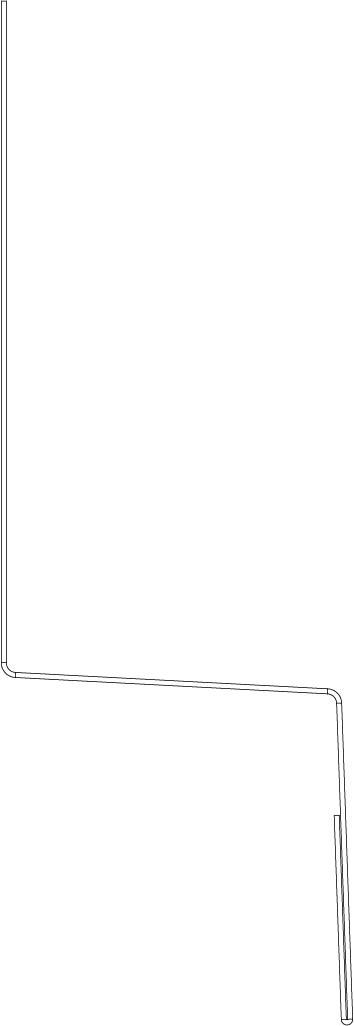

R Panel Wainscot

R Panel Wainscot
R Panel Wainscot 3D

Wainscot is used when wall panels are joined or for flashing the top of the panel.

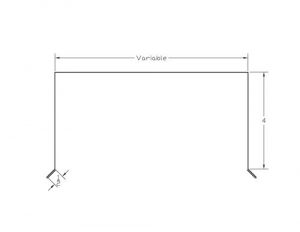

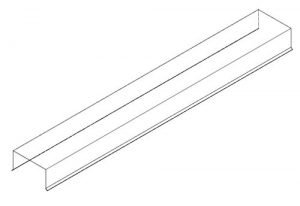

Parapet Wall Cap

Parapet Wall Cap
Parapet Wall Cap 3D

Used to cap or cover 3 sides.

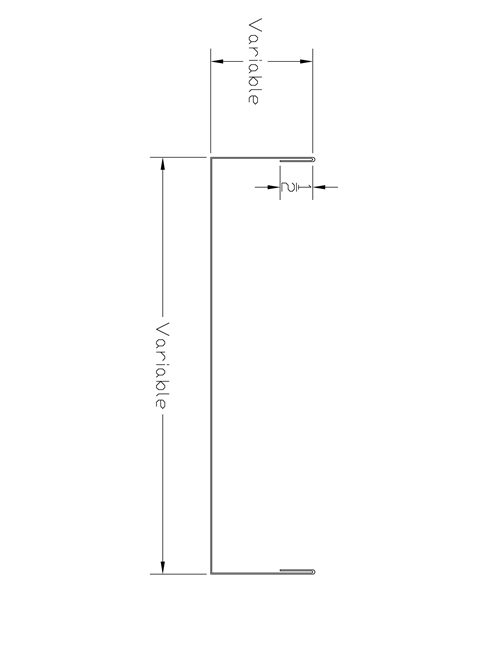

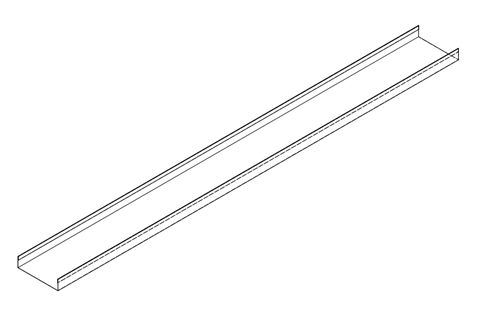

Hemmed Parapet Wall Cap

Parapet Wall Cap Double Hemmed 2D
Parapet Wall Cover Double Hemmed 3D

Bottom trim is installed at the bottom of wall sheets and elevates the panel 1″ off the floor.

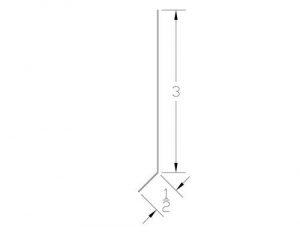

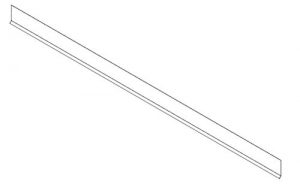

Parapet Wall Cleat

Parapet Wall Cleat 1
Parapet Wall Cleat 3D

Used to fasten and lock on sides of cap.

Benefits of Metal Panels

  • 36″ Coverage
  • 3/4″ rib on 9″ Centers
  • UL Class A Fire Rating
  • UL Class IV Impact Rated
  • 200mph Wind Resistance
  • Stocking 22 Colors, Textures & Galvalume
  • Steel Products Made With at Least 25% Recycled Material
  • Custom Cut Panels from 24″ up to 45′
  • Long-Lasting Colors with No-Nonsense warranties
    • 40 year warranty on paint
    • 25 year warranty on Galvalume
  • Lightweight Relative to its Strength
  • Easy to Install
  • Can Be Installed Over Existing Roof Materials
  • Short Lead Times with Fast Turnarounds

Color Chart – Click for larger view

Color Chart Commercial 500w

Benefits of Metal Panels

  • 36″ Coverage
  • 3/4″ rib on 9″ Centers
  • UL Class A Fire Rating
  • UL Class IV Impact Rated
  • 200mph Wind Resistance
  • Stocking 22 Colors, Textures & Galvalume
  • Steel Products Made With at Least 25% Recycled Material
  • Custom Cut Panels from 24″ up to 45′
  • Long-Lasting Colors with No-Nonsense warranties
    • 40 year warranty on paint
    • 25 year warranty on Galvalume
  • Lightweight Relative to its Strength
  • Easy to Install
  • Can Be Installed Over Existing Roof Materials
  • Short Lead Times with Fast Turnarounds
